Find What Fits Your Jeep
Details
Factory System Type
Premium: You have a premium system if you have a factory amplifier and subwoofer in your Jeep.
Standard: You have a standard system if you do not have a factory amplifier and do not have a factory subwoofer in your Jeep.
Product Overview

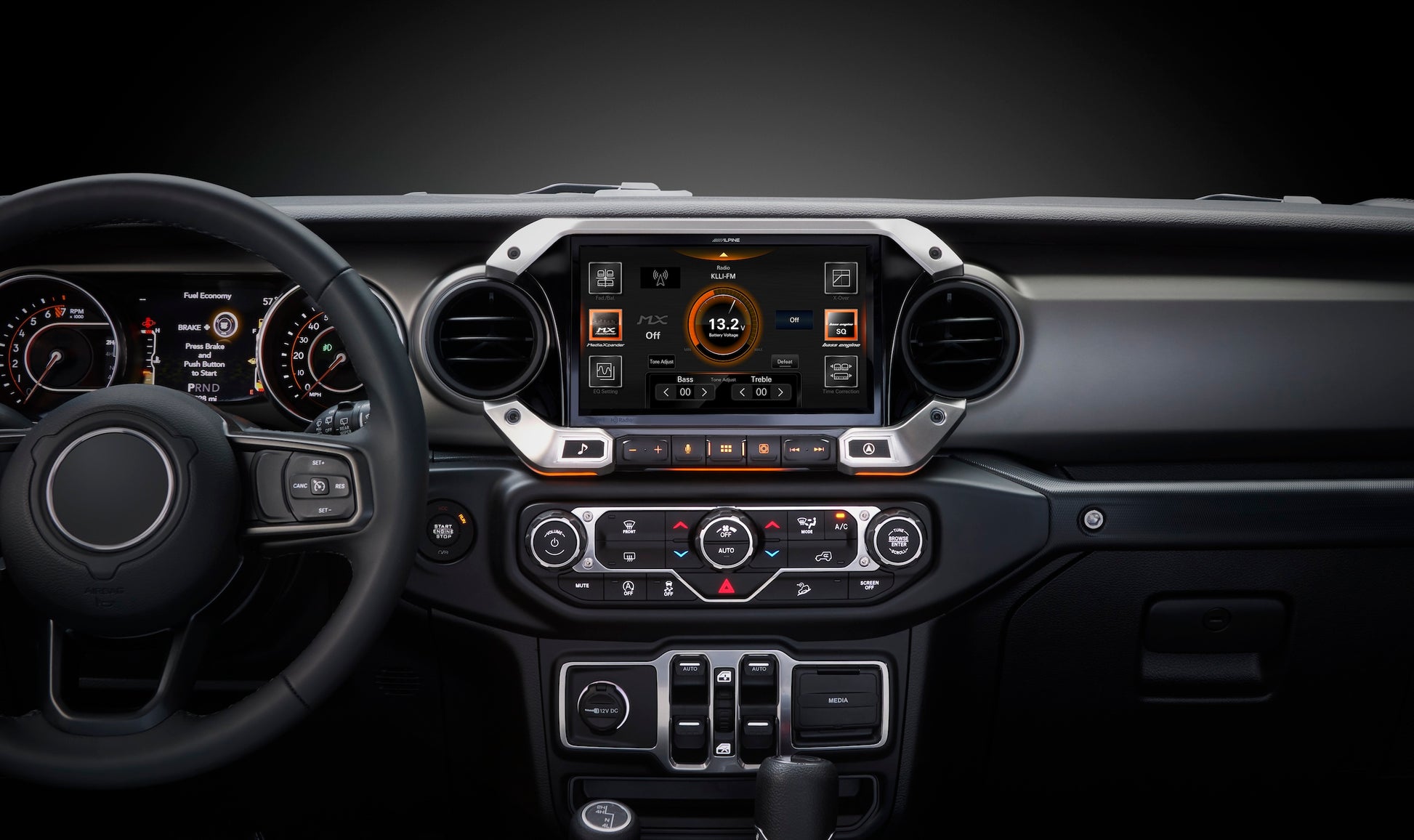

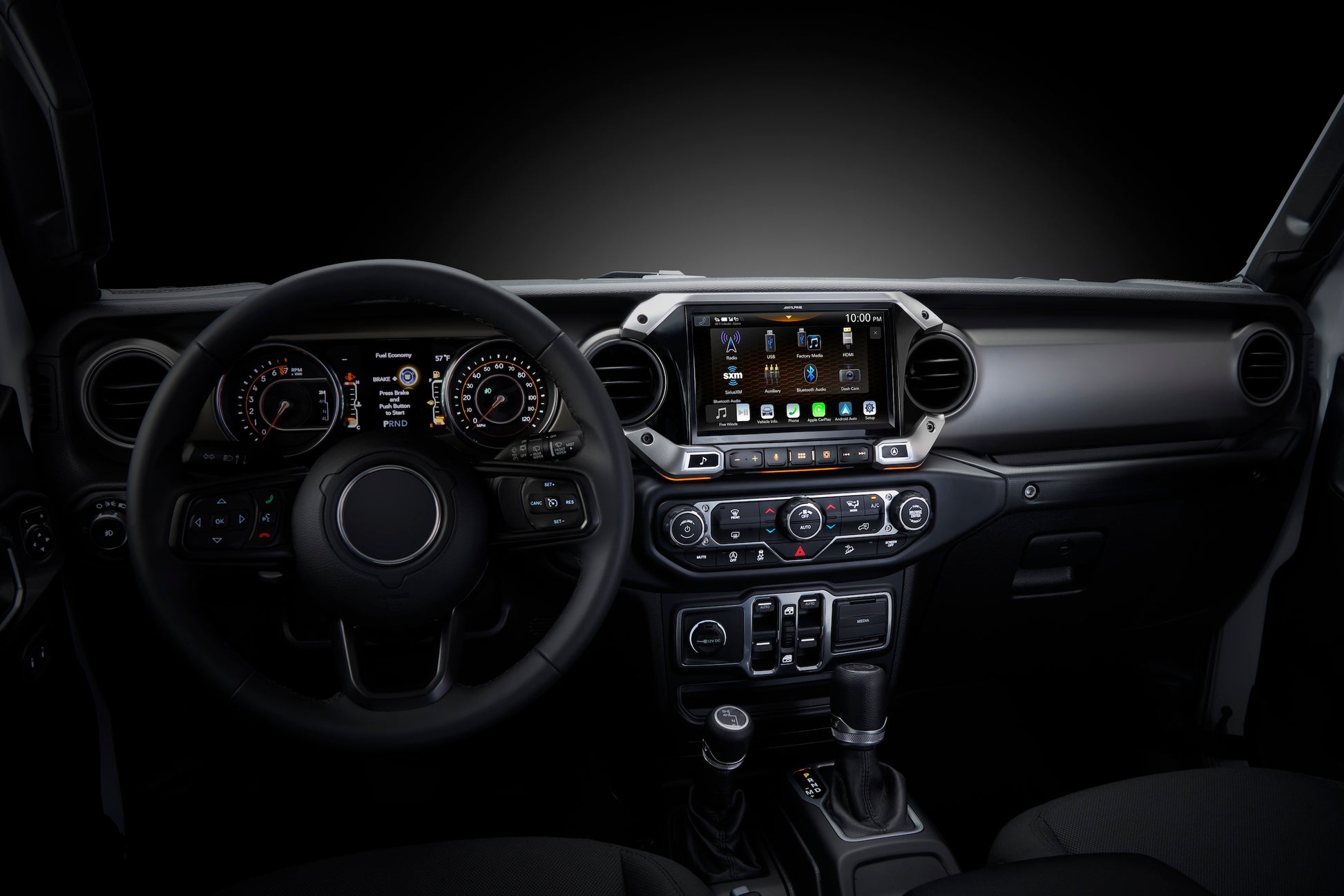

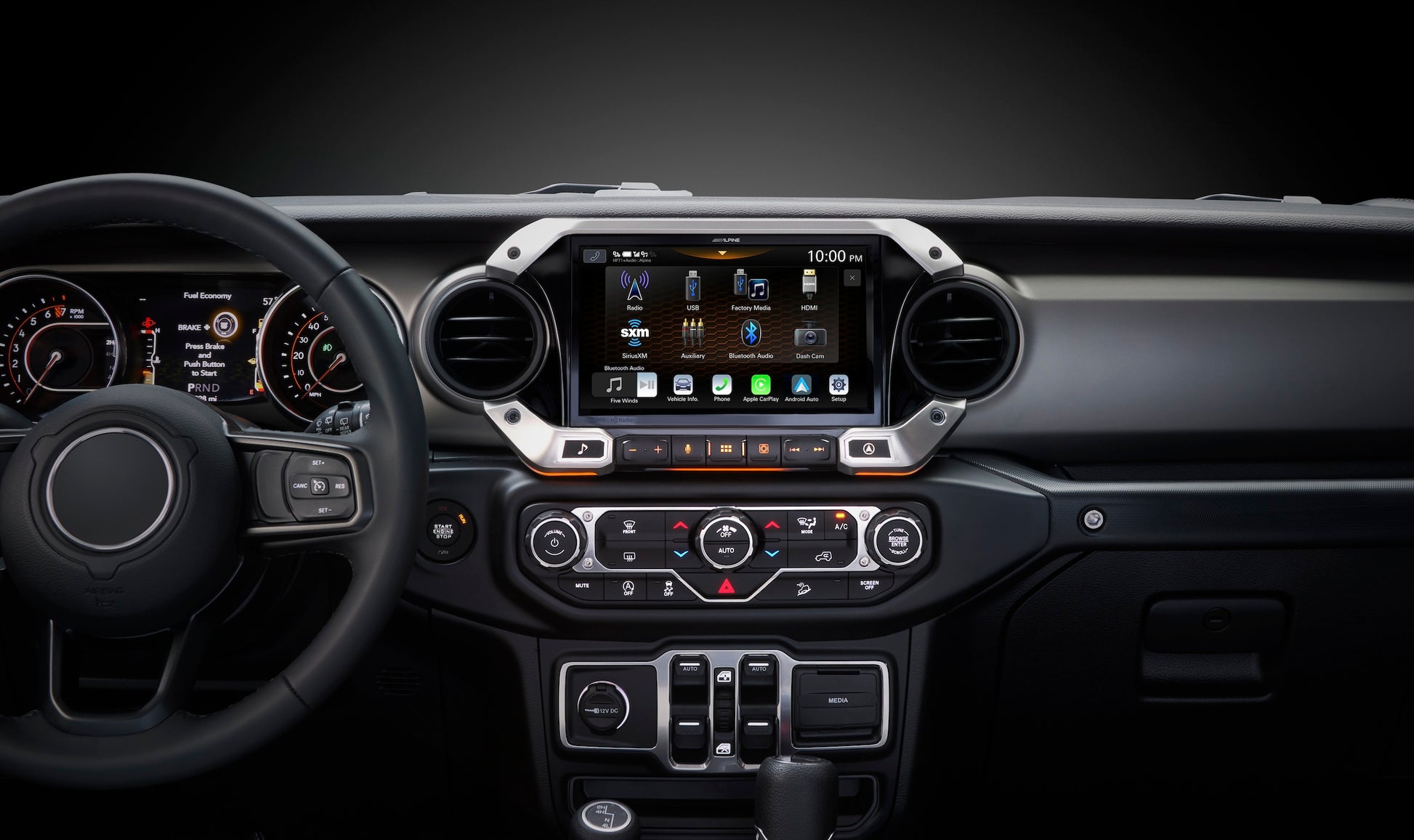

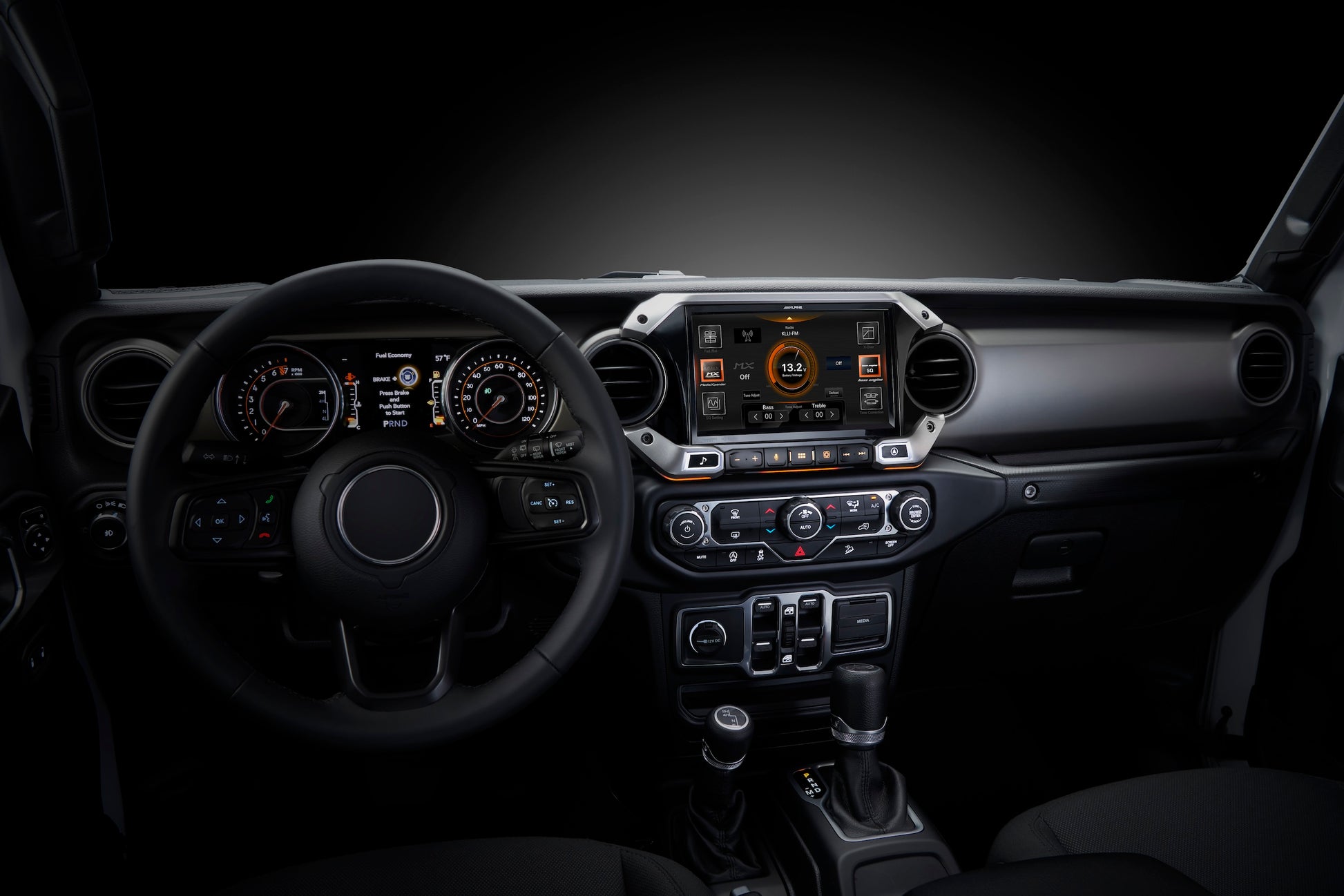

9-inch Weather-Resistant Digital Media Receiver with Hi-Res Audio Playback for 2018-Up Jeep® Wrangler JL and Gladiator

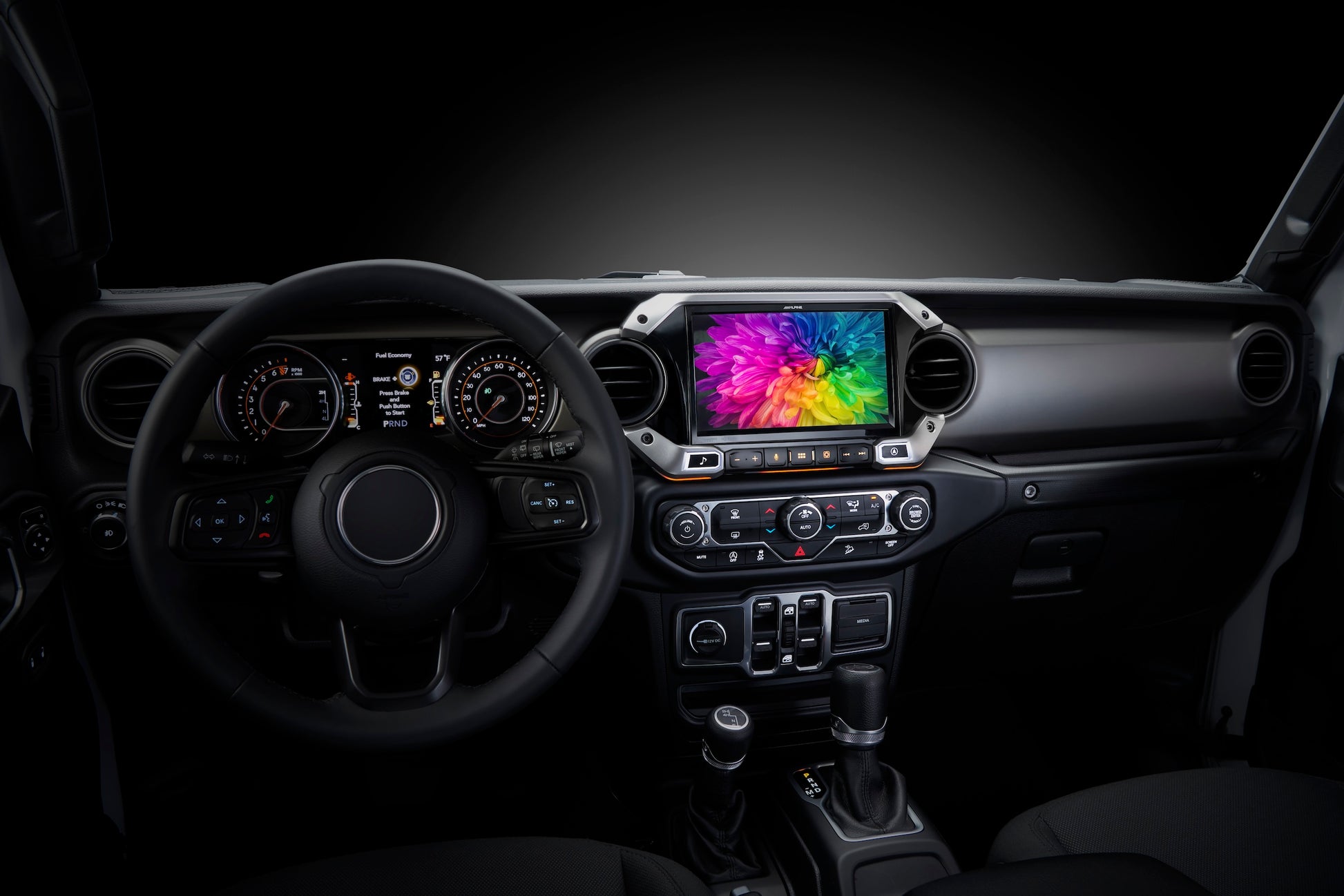

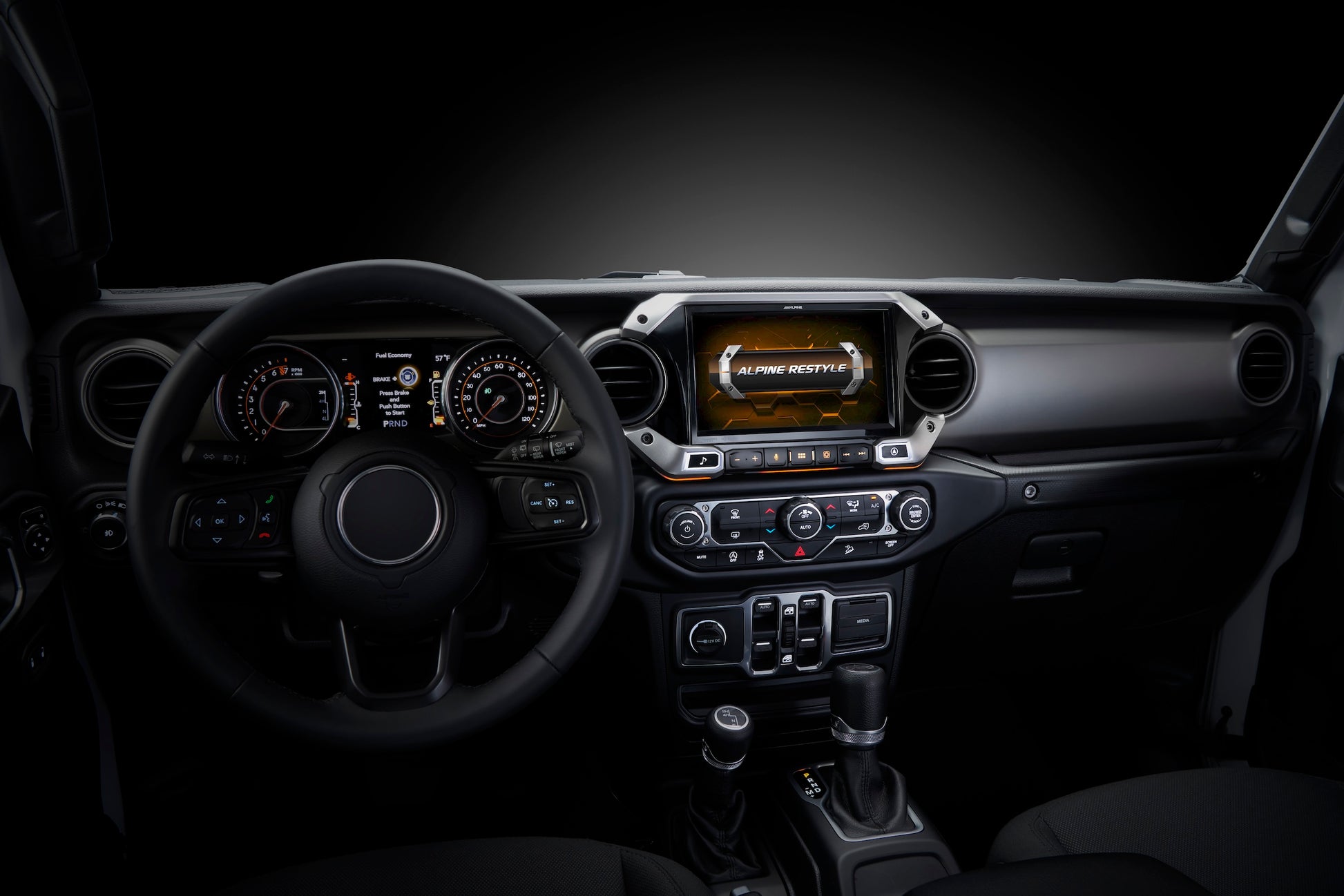

The display is housed in a Jeep® -specific trim bezel that emulates the look and feel of the Jeep® dash. A Jeep® -specific harness is included with the receiver to take out the guesswork during installation and make it a true plug-and-play solution. The weather-resistant display features a Jeep® -specific opening screen and LED color scheme for a consistent design with factory Jeep® settings.
Features

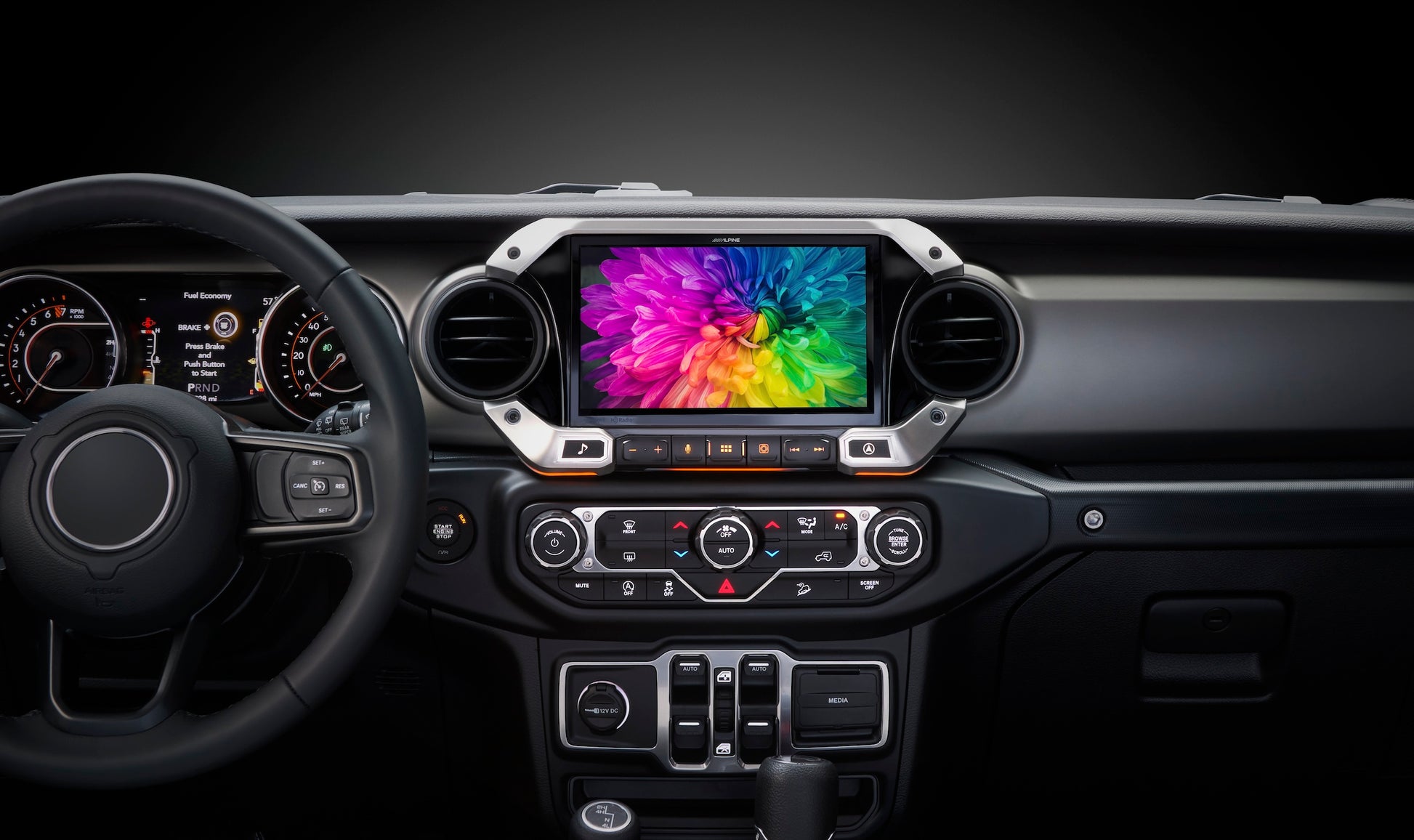

- 9-inch HD Anti-Glare Display with Jeep® Specific Trim Bezel
- Weather-Resistant (Rated IP53)
- Plug-and-Play Installation
- Jeep® Specific Tuning
- Hi-Res Audio Playback (96kHz / 24bit)
- Wireless Hi-Res Audio (requires LDAC compatible device)
- Hi-Res music streaming with TIDAL (A TIDAL subscription is required and sold separately; Alpine Head Unit must be tethered to a mobile or smartphone hotspot; Data rates may apply)

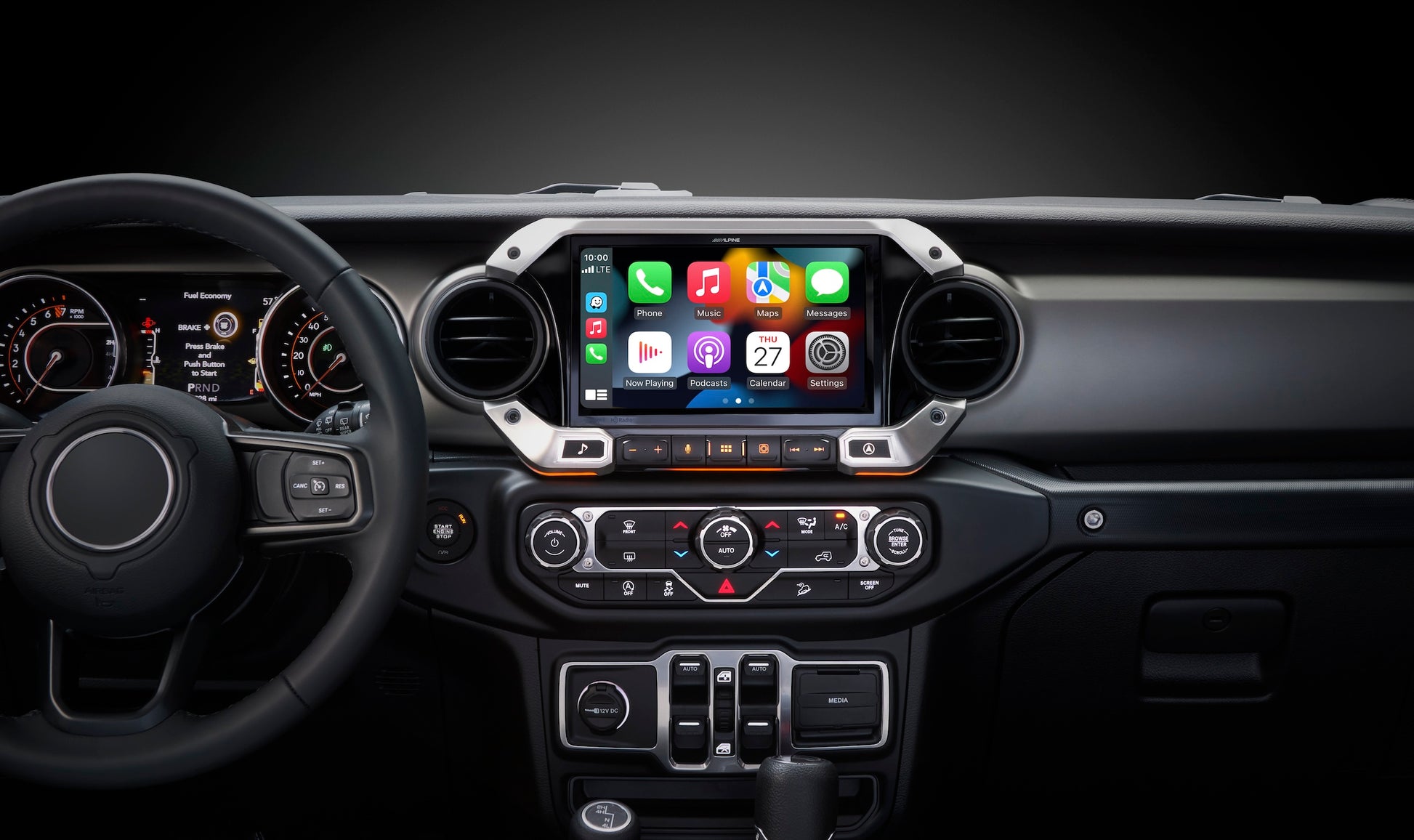

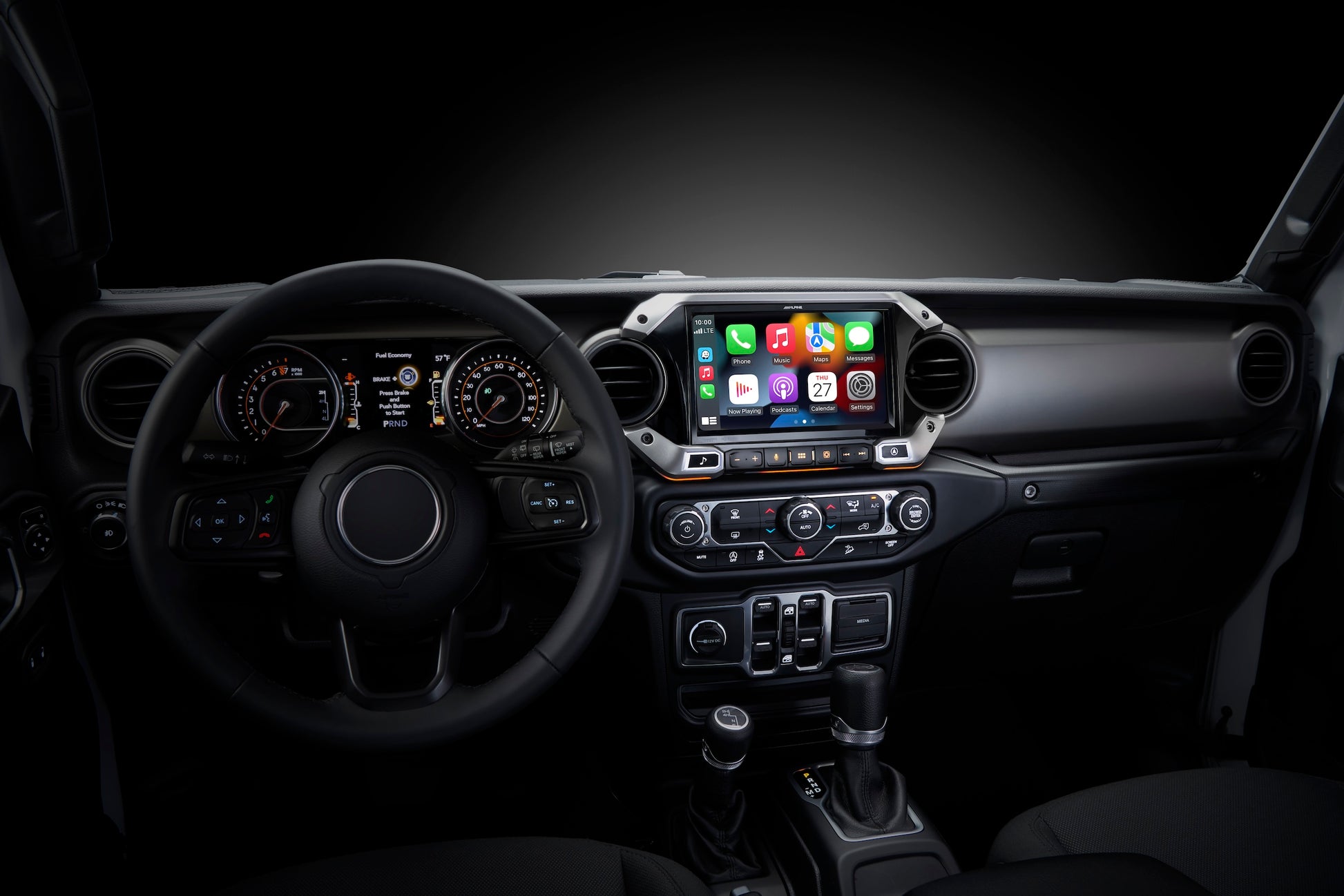

- Apple Carplay® (Wired & Wireless)

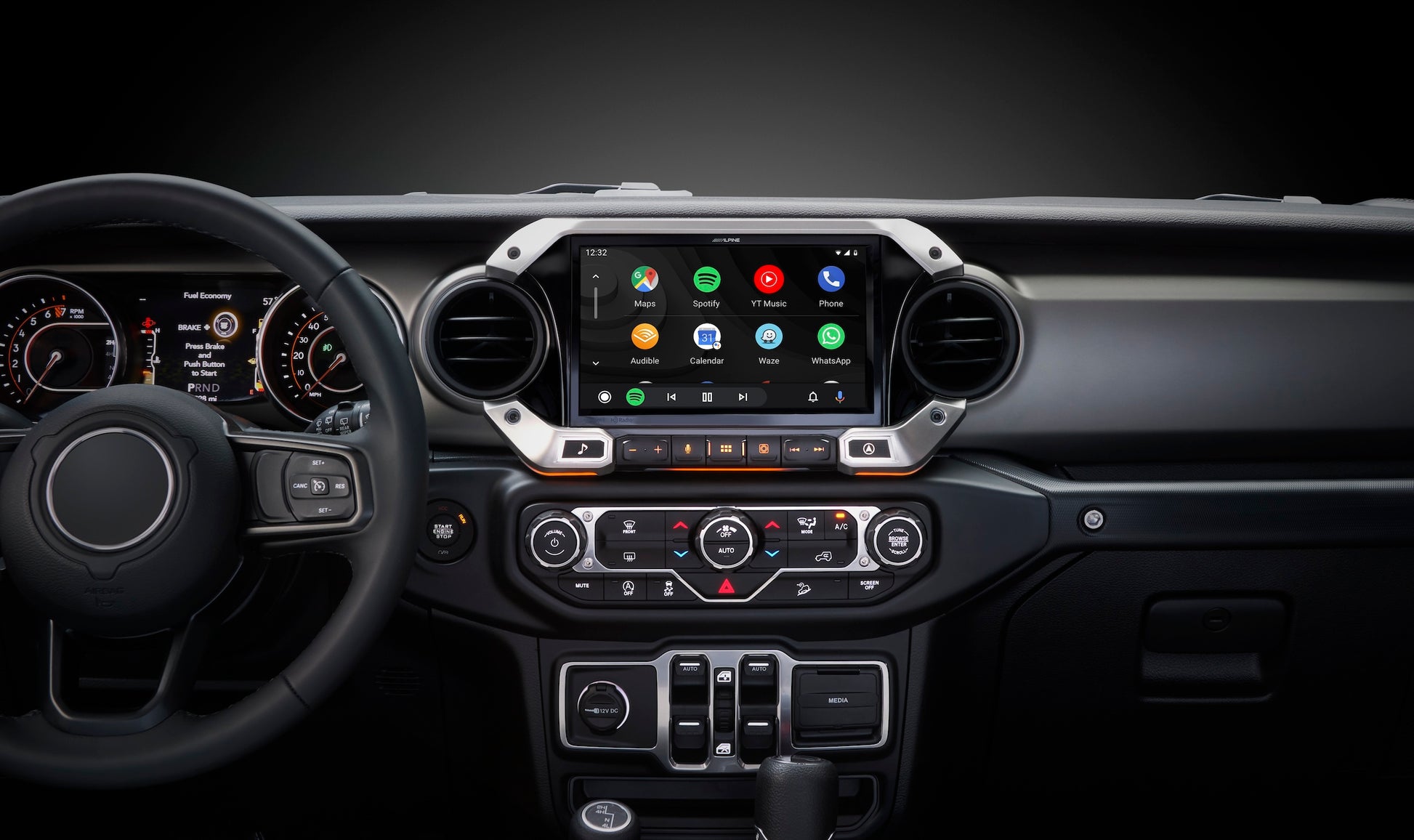

- Android Auto™ (Wired & Wireless)
- The Google Assistant is Available on Android Auto™
- Bluetooth® Hands-Free
- SiriusXM-Ready® with 360L (requires SXV300 Tuner, sold separately; SiriusXM subscription required; Some 360L content and features require a Wi-Fi connection with internet access. Data rates may apply)
- Built-in HD Radio®
- Retain Factory Media Controls and Vehicle Info with the included iDatalink Maestro module
- Alpine DVR-C320R Dash Cam Compatible (sold separately
- Retain Factory Amplifier with KCX-F200INT (sold separately)
- Media Xpander
What's Included
- 9" Touchscreen monitor
- Source unit
- Wiring harness (15A fuse)
- Preout harness
- iDatalink/Driver Recorder/Front Camera harness
- Camera input adapter harness
- Mic/SWC harness
- Microphone (w/ attached 12.5' cable terminated by a right-angle stereo-3.5mm connector)
- Surface-mount bracket
- Two-sided tape
- GPS antenna (attached 8' cable with proprietary connector)
- Self-adhesive mounting pad
- 3 Self-adhesive cable clamps
- Power-plate
- 2 Rear covers
- HDMI connector clamp
- 4 Pan-head ISO-screws (M5x8mm)
- 4 Counter-sunk ISO-screws (M5x8mm)
- 3 Display screws (M5x8mm)
- 2 Hinge screws (M3x4mm)
- 2 Rear cover screws (M2.6x6mm)
- 4 Rectangle self-adhesive sheets
- 4 Square self-adhesive sheets
- 2 Round self-adhesive sheets
- 2 Semi-oval self-adhesive sheets
- Quick Reference Guide
- Online Registration Information
- Online Detailed Manual Card
- iDatalink Maestro RR radio replacement interface module (ALP-MRR)
- Main harness
- Chime speaker
- USB/HDMI/Aux interface
- USB power adapter
- USB flashing cable
- Camera module
- Camera power harness
- 41" Composite video cable (not used)
- RCA-coupler
- Dash kit
- Display bracket
- Power inverter bracket
- Tuner bracket
- 2 Screws
- 2 Washers
- Display power/key harness
- Installation Manual
- "Read Before Installation" Note. Online Registration sheet
- Warranty Information
Tech Specs
- Screen Size: 9”
- Screen Resolution: WXGA 1280 x 720px (720p HD)
- AUX Input: 1
- HDMI Input: 1
- HDMI Output: 1

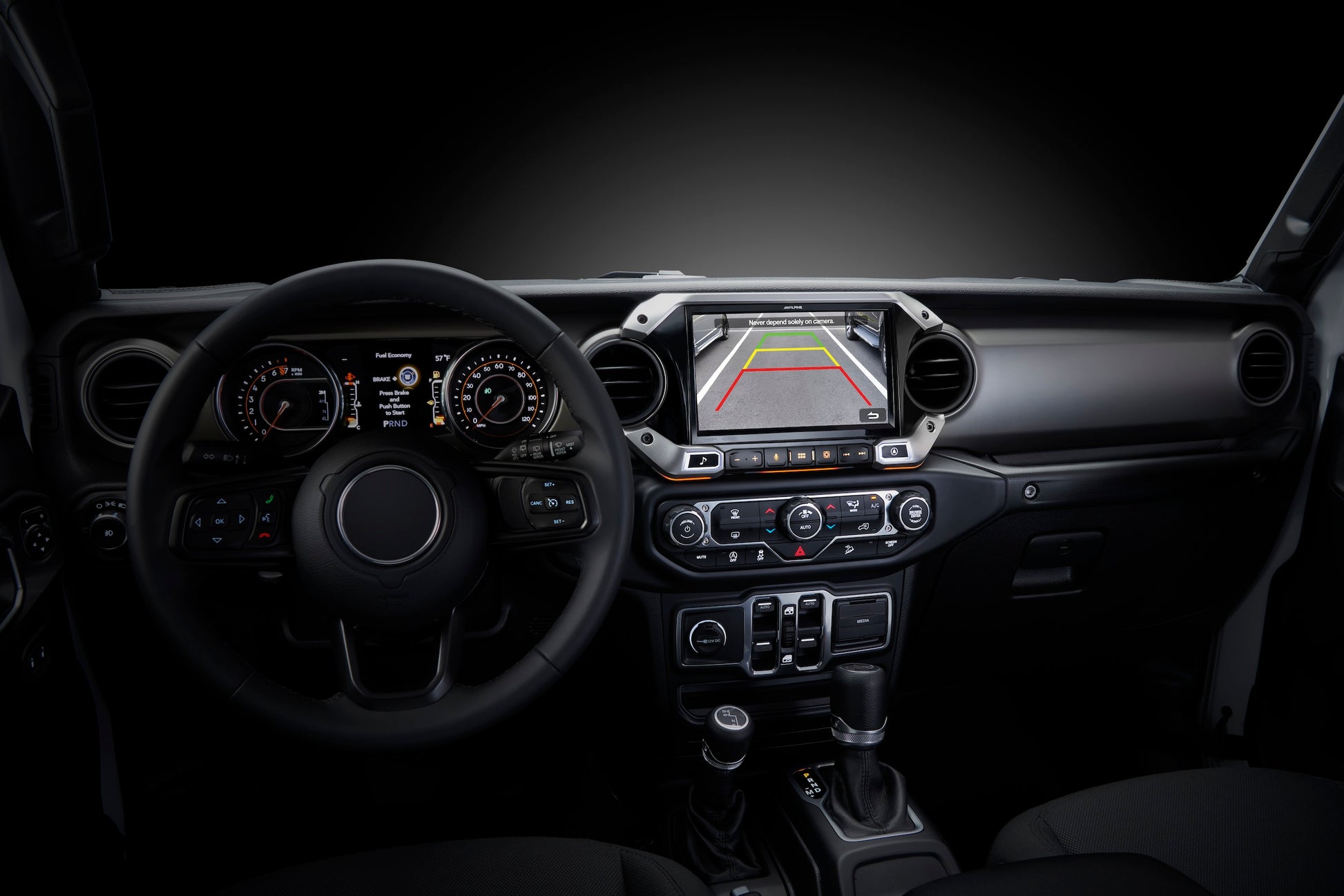

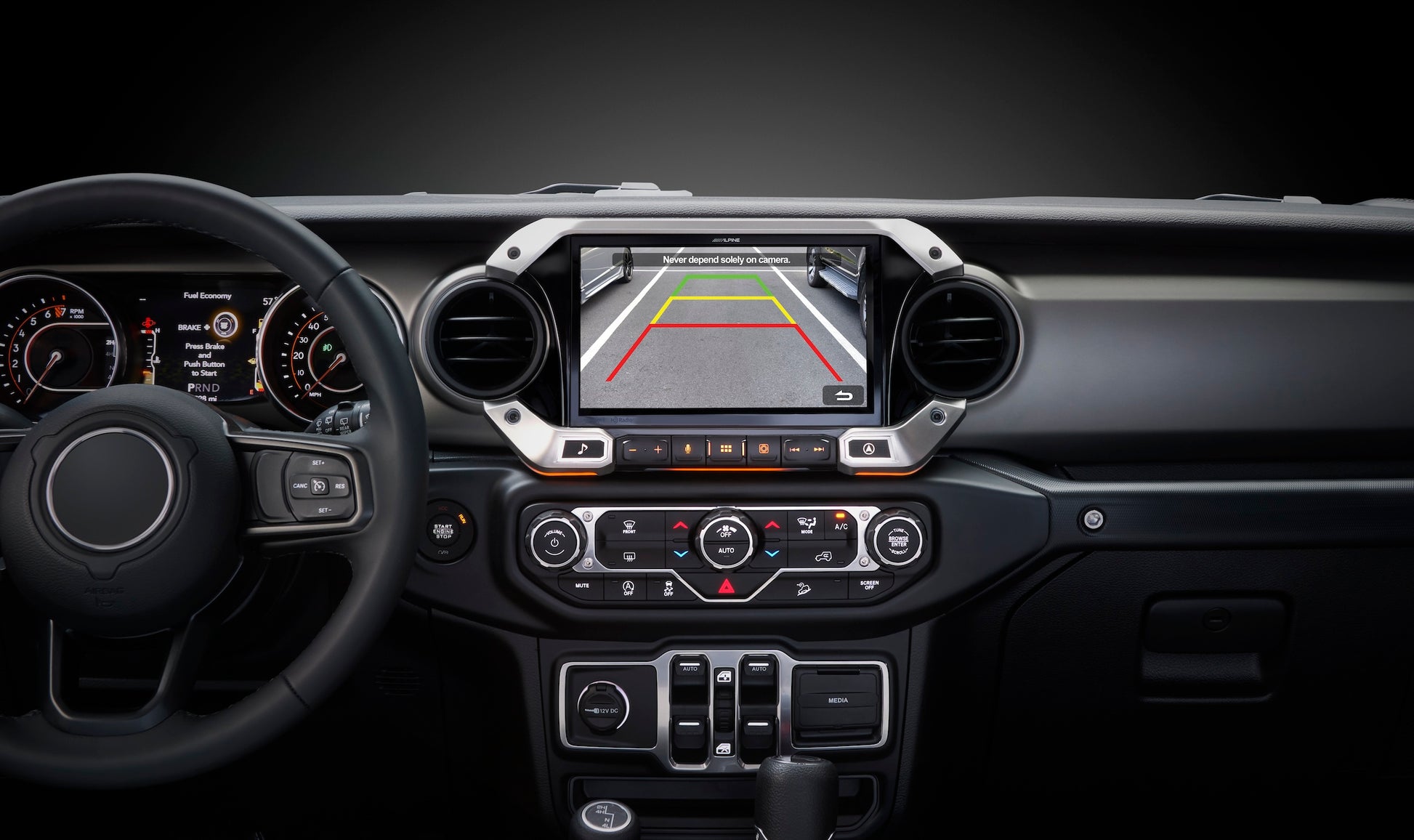

- Camera Inputs: 2 Direct (1 Rear input, 1 input that can be set as Front, Side, or Other)
- Dash Cam Input: 1 (Works best with Alpine DVR-C320R- sold separately
- USB Inputs: (1 data, 1 charge only port)
- 4V Pre-Outs: 3
- Built-in Amplifier: 18W RMS x 4
- EQ: 13-Band Parametric (per channel)
- Time Correction: 6-Channel
- DAC: 24 Bit
- Crossover: High Pass / Low Pass
- Audio Playback: AAC, APE, FLAC, MP3, WMA, WAV
- Video Playback: AVC, FLV, H.264, MP4, MPEG-1, MPEG-2, MPEG-4, MKV, MOV
