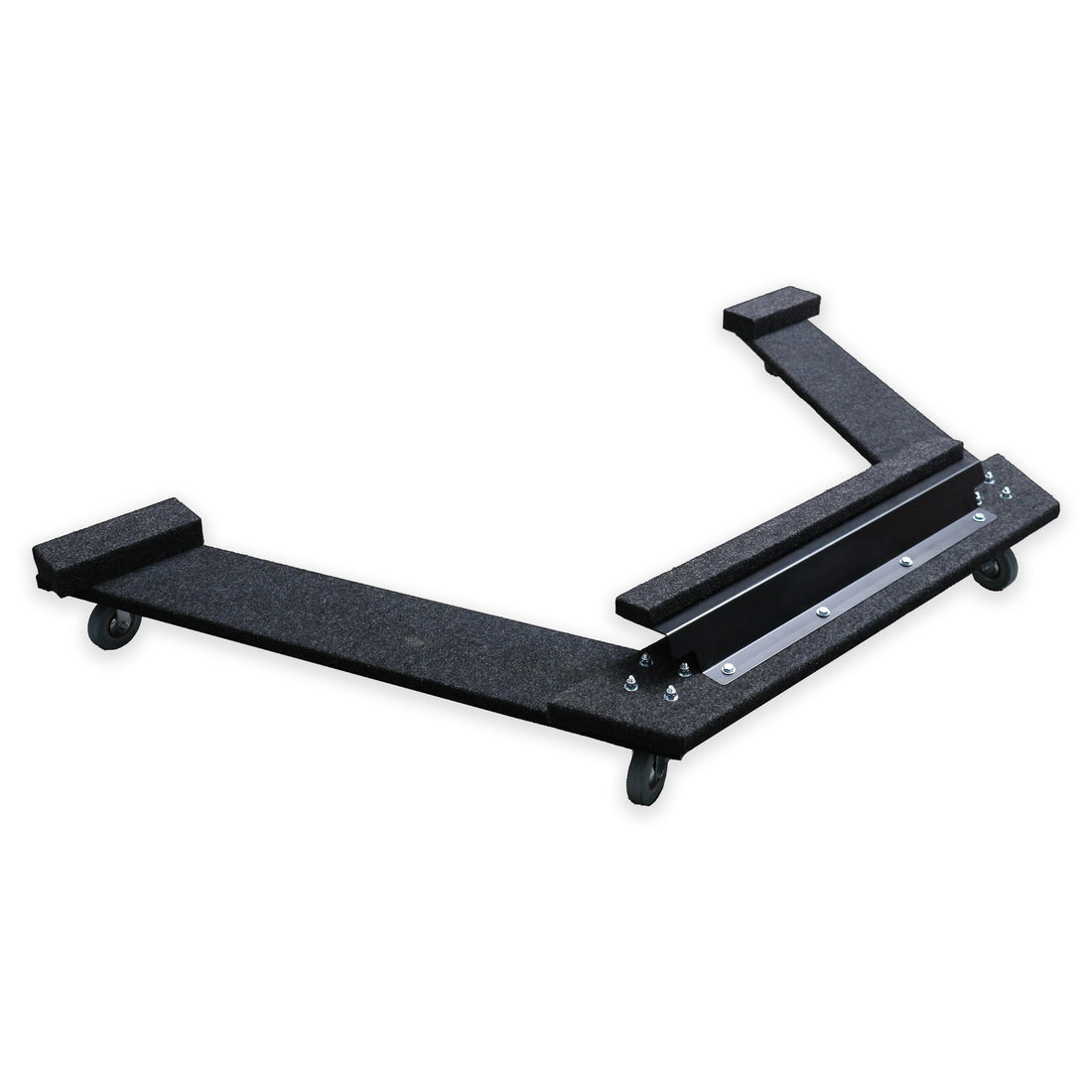

Bantam Overland Hard Top Cart | Universal Fitment

• (A) Center Section
• (B) Right Leg
• (C) Left Leg
• (D) Z Bracket
• (E) Z Bracket Pad
• (F) End Blocks (x2)
• (G) Caster Wheels (x4)

• Safety Glasses
• 7/16" Wrench
• 7/16" Socket & Ratchet
• Flat Blade Screwdriver

1. Attach Right Leg (B):

• Position the Right Leg under the Center Section (A) so that the square cut end is under the Center Section and the angled end faces outward.

• Install (4) ¼" x 2.25" bolts (I) with (4) washers (L) from the bottom of a caster, through the leg and into the Center Section.

• On top, secure with (4) washers (L) and (4) Nylock nuts (K).

• Tighten using a 7/16" wrench and socket/ratchet.

2. Repeat the above step for the Left Leg (C).

• Make sure both angled ends are parallel.

3. Attach End Blocks (F):

• Install (4) Lag Bolts (H) with washers (L) through the caster and leg, threading them into one End Block.

• Ensure the predrilled side of the End Block faces downward.

• Tighten with a 7/16" socket.

• Repeat for the opposite side.

4. Attach Z Bracket Pad (E) to Z Bracket (D):

• Make sure the  drilled side of the pad is facing down.

• Use a flat blade screwdriver to secure with (4) wood screws (M) from the bottom of the bracket into the pad.

5. Install Z Bracket Assembly:

• Place the assembled Z Bracket on the Center Section.

• Use (4) 1.5" bolts (J) and washers (L) from the top, going through the bracket and cart.

• Secure underneath with (4) Nylock nuts (K) and washers (L).

• Tighten with a 7/16" wrench and socket.

• The cart is now ready.

• Due to the weight and size of hardtops, assistance from 1–2 people is recommended.

• Ensure the rear liftgate window is closed and secured before placing the hardtop..

• Position the hardtop so the bottom corners rest inside the End Blocks and the top leans against the Z Bracket Pad.

• Confirm the hardtop is centered and the rear window is not touching the cart.
