This installation guide is intended to be used to assist you during the installation of your Factory Subwoofer Replacement from Bantam Overland.
Subwoofer replacement only available for 2007-2018 with subwoofer enclosure in passenger rear corner of cargo area.
Tools Required:
- T-20 Torx bit or driver
Step 1:
- Remove the six (6) T-20 Torx screws from the factory grille cover.
-
Remove the factory grille as well as the factory subwoofer.
- Disconnect two (2) connectors on the back of the subwoofer.

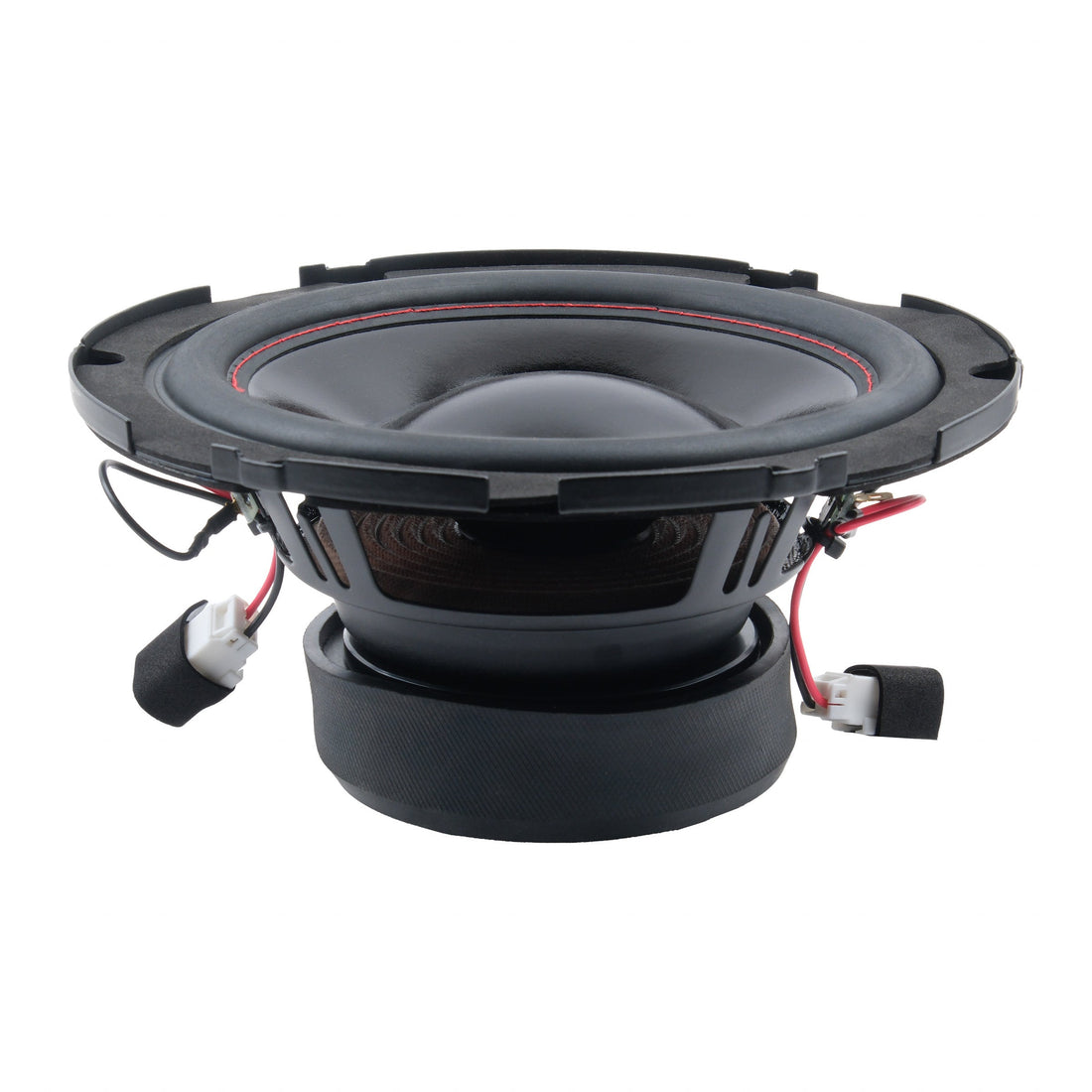

- Plug the two (2) factory subwoofer plugs into the Bantam Overland replacement subwoofer. Speaker connections can be placed in either plug.
- Align the “notch” on the subwoofer with the one on the factory subwoofer enclosure.
- Place subwoofer into the factory enclosure, replace grille and hand start each of the six (6) T-20 Torx screws.
- Tighten all six (6) T-20 Torx screws, be careful not to over tighten these screws.
- Power on head unit and test your new subwoofer.
